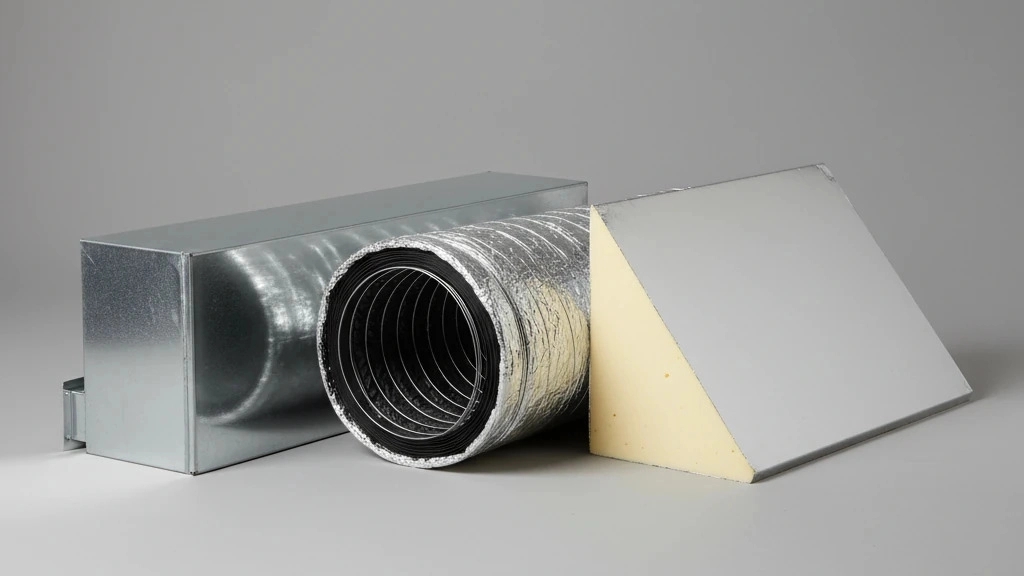

In the world of air conditioning and installations, the choice of duct type plays a decisive role in the performance of the HVAC system. If the ventilation channel is not selected and installed correctly, the efficiency of cooling and heating devices will decrease and energy consumption will increase significantly. Among all the materials used, Galvanized channel, Flexi Bell channel and Pre-insulated channel are three common and useful types in different projects. Each of these channels has its own characteristics, advantages and limitations, which should be selected according to the environmental conditions and the type of project.
In this article from the Mirzaei channeling series, we will examine in detail the difference between galvanized, flexi-bell and pre-insulated ducts in the air conditioning system so that while familiarizing yourself with the technical features of each type, you can choose the best option for your building or industry project.
The importance of choosing the right channel in the air conditioning system
The presence of uniform air flow, calm and without pressure drop, is the most important task of any air conditioning system. The role of the ventilation channel in delivering fresh air from central devices to different spaces is undeniable. Choosing the wrong type of channel can lead to air leakage, pressure drop, high noise and energy loss.
In a big city like Tehran, where the weather and construction conditions are diverse, paying attention to the quality of the channels is doubly important. Mirzaei Channeling Group specializes in designing and manufacturing and installing all types of galvanized, flexi-bell and pre-insulated channels in Tehran, and tries to offer the best materials and installation methods according to each project.
Introducing the types of channels used in air conditioning systems
In ventilation systems, the goal is accurate and effective transfer of air flow between different sources and spaces. For this purpose, various types of channels with different materials and structures are used. The most common types in Iran are:
Galvanized channel
Galvanized channel is made of steel sheet coated with zinc to resist rust and corrosion. These channels are the most traditional and at the same time the most widely used model in ventilation systems. High resistance, long life and the ability to make in desired dimensions are the main features of this type of channel.
Flexi Bell channel
Flexi Bell channel or flexi pipe is a type of flexible channel that is made of multi-layer aluminum foil with an internal steel spring. It is light, flexible and suitable for limited spaces and is often used in duct splits, false ceiling and winding paths.
Pre-insulated channel
Pre-insulated duct is made of polyurethane or polystyrene foam panels with aluminum coating on both sides. This type of channel is thermal and sound insulation at the same time and prevents the transfer of environmental heat. In modern projects where beauty, efficiency and speed of installation are important, the pre-insulated channel has gained many fans.
The difference between galvanized, flexibel and pre-insulated channels in terms of structure and efficiency
Each type of ventilation duct has a different physical structure, weight, durability and resistance, which directly affects the performance of the system. In the following, we will examine the difference between these three types of channels from different aspects.
The difference in terms of gender and resistance
Galvanized channel is made of metal and has high mechanical resistance. This type does not change its shape against the pressure of suction or blow.
On the other hand, the Flexi Bell channel is suitable for short and low-pressure routes due to its flexible structure.
The pre-insulated channel is also light but relatively resistant and is ideal for use in office and commercial environments.
Difference in weight and ease of installation
One of the important differences between these three models is the weight and installation method.
Galvanized channel is heavier and needs a strong support and fixer.
Flexi Bell channel is very light and can be installed in the shortest time. For this reason, it is very common to implement it in limited spaces or false ceilings.
The pre-insulated channel has a high installation speed due to its light weight and integrated property, and is suitable for projects with a limited schedule.
The difference in terms of energy loss
In the galvanized channel, if proper insulation is not done, heat transfer to the environment can cause energy loss.
In contrast, the pre-insulated channel is inherently thermally insulated and has almost no heat exchange with the environment.
If the Flexi Bell channel is of the standard type and covered with aluminum foil, it prevents heat loss to some extent, but it is not as effective as pre-insulation.
Difference in durability and longevity
Galvanized channel is durable and can be used for years without needing to be replaced.
Flexi Bell channel usually has a shorter life and is subject to tearing or mechanical damage.
The pre-insulated channel is between the other two types and offers good durability in case of proper installation.
Acoustic performance and noise in any type of channel
One of the main concerns in the design of ventilation systems is to prevent the emission of sound in the air flow path.
Galvanized channel may cause more noise due to the metal material, but this problem can be solved by installing sound damper or internal insulation.
Due to its flexibility and soft surface, the Flexi Bell channel absorbs sound to some extent and is a suitable option for quiet spaces such as homes or offices.
The pre-insulated channel also inherently has high sound absorption properties and is considered one of the best options for modern and hospital buildings.
Difference in construction and maintenance cost
From an economic point of view, the price difference depends on the type of project and the materials used; However, the final cost should not be the only selection criterion.
Galvanized channel, although it requires more initial capital, but its high durability reduces maintenance costs over time.
Flexi Bell channel is cheaper, but in long-term projects, it may need to be replaced.
Pre-insulated duct has a higher initial cost than flexi, but is more economical overall due to the elimination of the need for separate insulation.
Application of any type of channel in different projects in Tehran
In Tehran, construction projects are wide and diverse and each one has a special need for ventilation system.
Galvanized channel is mostly used in towers, commercial centers and industrial environments.
Flexi Bell channel is an ideal option for apartments, offices and projects with shorter routes.
The pre-insulated channel is also welcomed in luxury buildings or projects that require delicate design.
Mirzaei Canalization by carefully examining the conditions of each project in Tehran, suggests the best type of channel from among galvanized, flexibel or pre-insulated, so that the final system has a high efficiency.
Production and execution stages of channels in Mirzaei channelization
In Mirzaei canalization complex, every project from design to final installation is carried out under the supervision of engineers.
Galvanized channels are cut with CNC machines and shaped with controlled heat.
Flexibel channels are produced from high-quality and resistant materials and are connected at the installation site.
The pre-insulated channels are also cut by a special team and sealed with glue and aluminum connections.
All the steps are carried out in accordance with air conditioning standards so that finally, the system without air leakage and with a balanced flow is available to the employer.
The role of elastomeric insulation in channel optimization
Even with the difference between the types of ventilation ducts, professional insulation should be done to maintain high efficiency.
Elastomer insulation is one of the best options for covering galvanized and flexi-bell channels. This insulation is resistant to heat, moisture and UV rays and prevents the formation of dew and sweating on the channel.
Mirzaei's professional channelization team implements all insulation works in accordance with the latest international standards to reduce energy consumption as much as possible.
Advantages of using Mirzaei's channeling services
Mirzaei Ducting Group in Tehran, with years of experience in implementing domestic, commercial and industrial projects, is a reliable option for ordering the construction and installation of air conditioning ducts.
The benefits of cooperation with this collection include the following:
- Precise and scientific execution of galvanized, flexi-bell and pre-insulated channels
- Use of standard and resistant materials
- Timely delivery of high quality projects
- Compliance with safety and health standards during implementation
- Providing periodic maintenance and inspection services after installation
Final summary
Choosing between Galvanized channel, flexibel and pre-insulated depends on project needs, cost and installation conditions. Galvanized channel is more suitable for large and industrial projects, while flexibel channel is used for short routes and quick installation. On the other hand, the pre-insulated channel offers a combination of durability, lightness and insulation at the same time.
